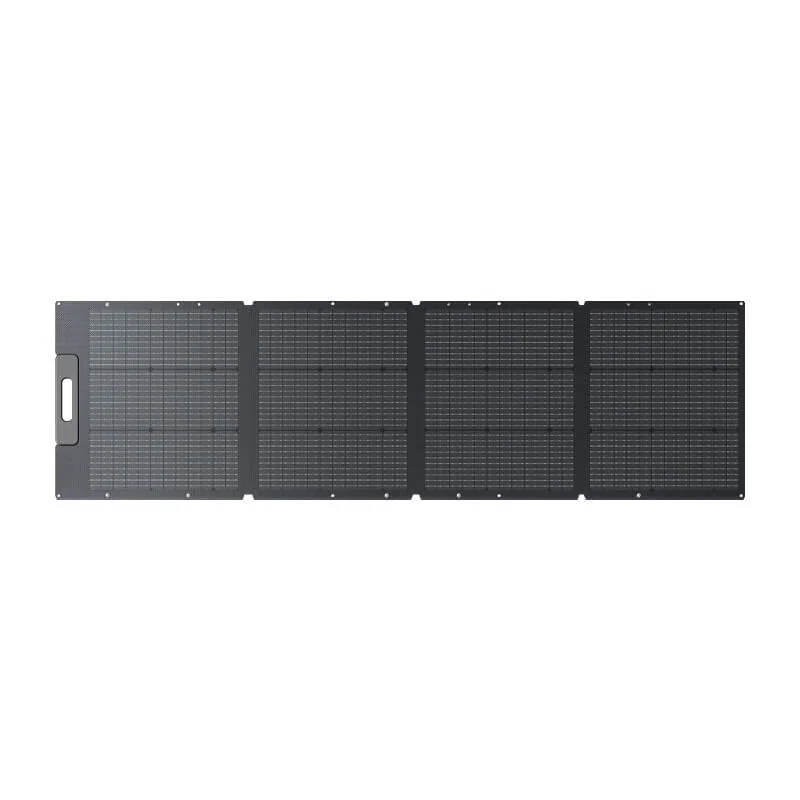

BLUETTI PV200 200W Solar Panel
The BLUETTI PV200 is a foldable 200W solar panel designed for portable solar charging with compatible BLUETTI power stations and other suitable solar generators.
It is suitable for camper vans, caravans, camping, garden cabins, outdoor work, field use and temporary off-grid charging. The panel folds down for easier storage and transport and opens out when solar charging is required.
Portable 200W Solar Charging
The PV200 provides a portable way to charge a compatible power station using available sunlight. It uses monocrystalline silicon solar cells with an ETFE laminated surface and has a rated peak power of 200W.
Actual solar output will vary depending on sunlight intensity, season, cloud cover, shade, panel angle, temperature, dirt and the solar-input limits of the connected power station.
Foldable Design for Portable Use

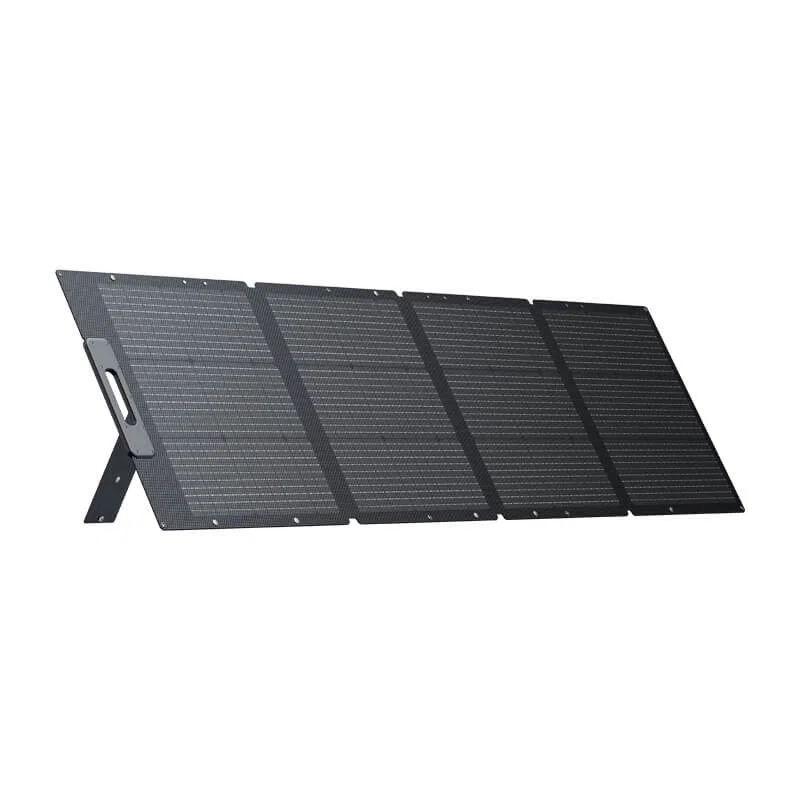

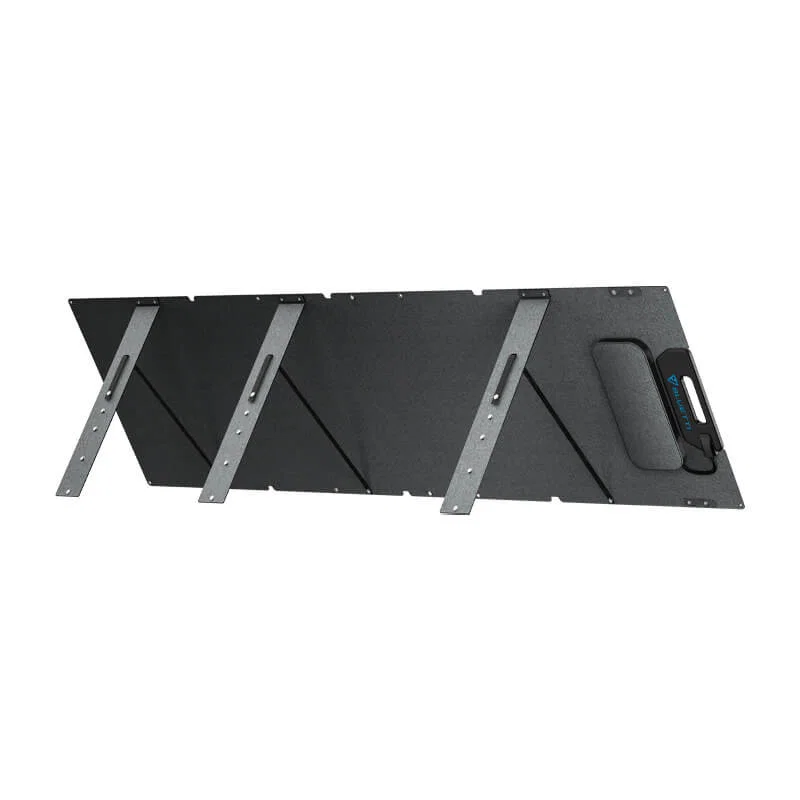

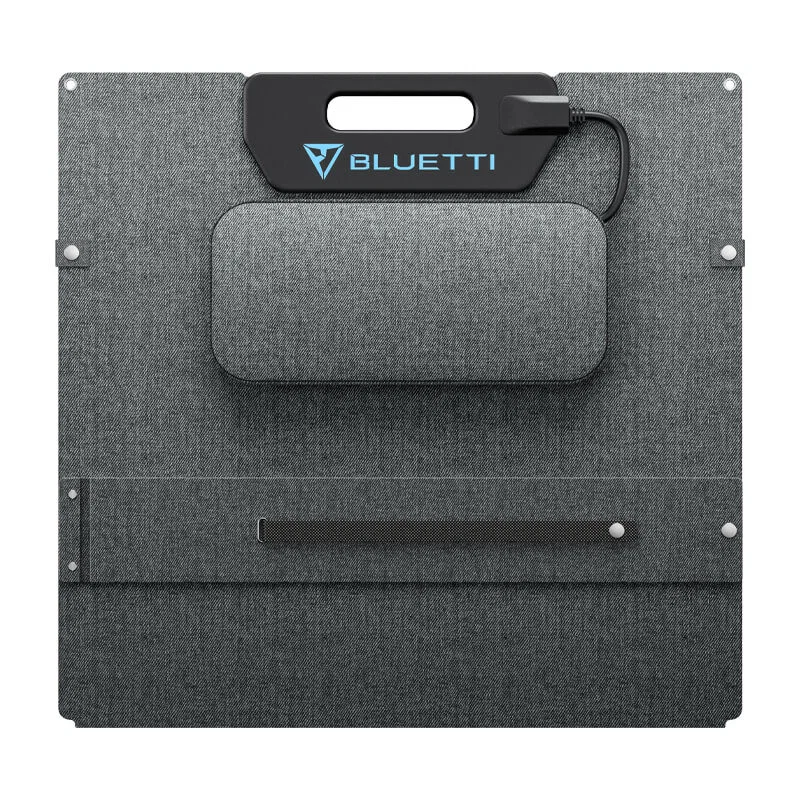

The BLUETTI PV200 folds down when not in use, making it easier to carry, store and transport. Integrated kickstands allow the panel to be positioned towards available sunlight.
The panel is intended for temporary portable use and should not be permanently installed on a roof or left continuously exposed outdoors.
The junction box has an IP65 water-resistance rating. BLUETTI advises that the solar panel itself should not be exposed to rain or snow or submerged in water.
For best results, position the panel in direct sunlight and adjust its angle during the day where practical. Shade across any part of the panel can reduce charging performance.
Suitable For
- Charging compatible BLUETTI portable power stations
- Camper vans, caravans and camping
- Garden cabins and sheds requiring temporary solar charging
- Outdoor work, events and field use
- Portable solar charging without a fixed installation
Compatibility must be checked against the power station’s permitted solar-input voltage, current, power and connector requirements.
|
Product |
BLUETTI PV200 200W Solar Panel |
| Size | Unfolded Dimensions: 226.5 × 59 cm, Folded Dimensions: 60 × 59 cm |
| Weight | 7.3 kg |
| Solar Cell Type | Monocrystalline Silicon with ETFE Lamination |
| Power | 200 W |
| PMax – Maximum Achievable Power | 200 W under standard test conditions |
| VOC – Voltage Open Circuit | 26.1 V |
| ISC – Ampere Short Circuit | 10.3 A |
| VMP – Voltage Maximum Power | 20.5 V |
| IMP – Ampere Maximum Power | 9.7 A |
| Solar Cell Efficiency | Up to 23.4% |
| Output Type | Standard MC4 Connectors with 3 m Cable |
| Waterproof Rating | IP65 Junction Box Only – Do Not Expose the Panel to Rain or Snow |
| Stand | Integrated Adjustable Kickstands |
| Warranty | 2-Year Manufacturer Warranty |
What’s in the box: 1. BLUETTI PV200 200W Solar Panel with attached MC4 cable, 2. User Manual
