Staubli MC4-Evo Ready – Crimpless Connector Pair

Name: Staubli MC4-Evo Ready - Crimpless Connector Pair
SKU: PV-KBT4-EVO READY
Availability: OutOfStock

€12.00 Inc. 23% VAT

(€9.76 Excl. VAT)

Out of stock

SKU: PV-KBT4-EVO READY Categories: Accessories, Shop All

Description

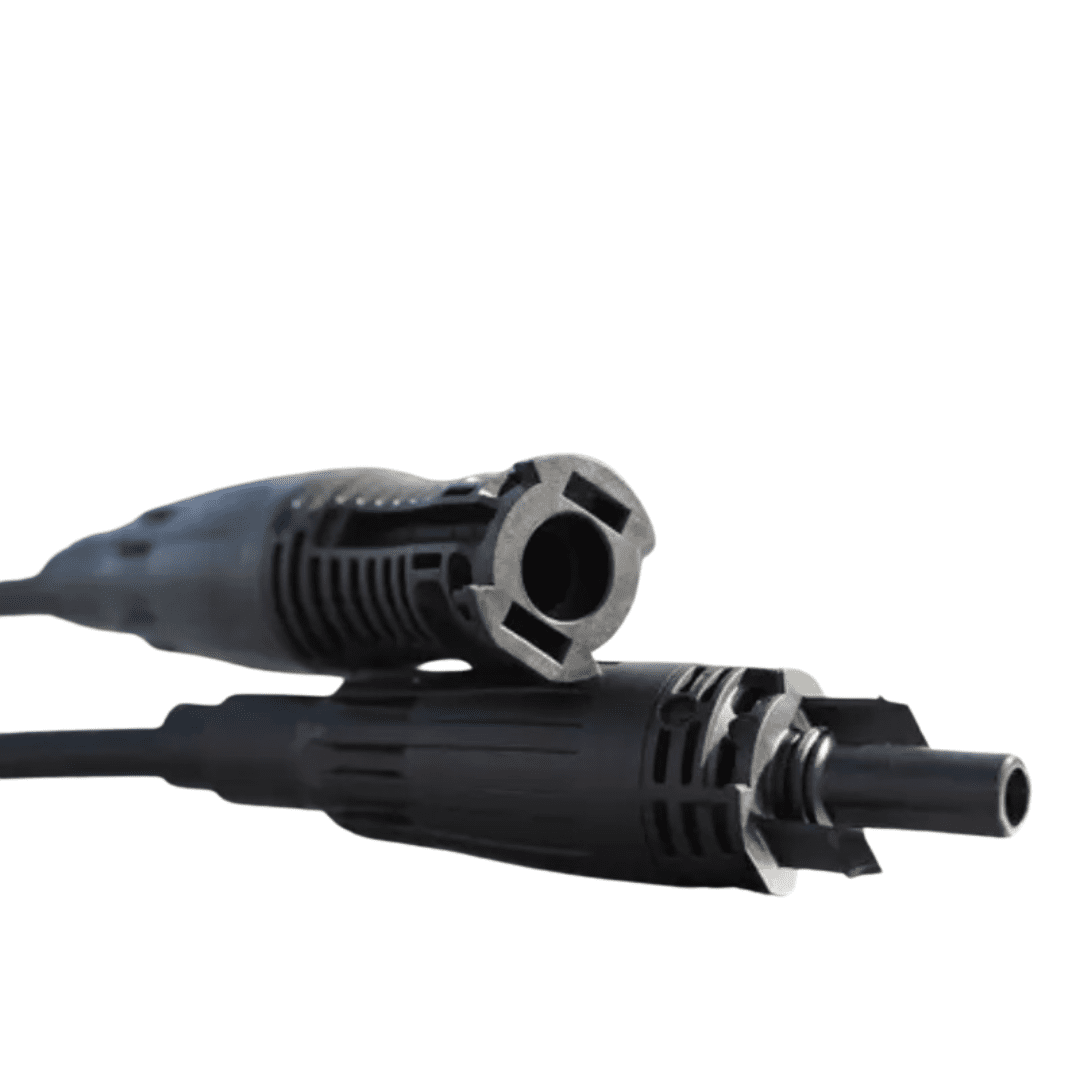

Stäubli MC4-Evo Ready Connectors

This MC4-Evo Ready is an easy-to-use snap-in PV DC connector. It is super quick to install enabling crimp-free assembly without the need for special tools. The reduced complexity of the assembly process allows you to save time while ensuring Stäubli quality.

Tool-free cable connection: no crimping necessary, the contact is made by an automatically closing spring clamp.
No single parts, the connectors are complete and pre-screwed: insert the stripped PV lead, screw on the housing, done!
Compatible with other Staubli MC4 connectors.

Product	Stäubli MC4-Evo Ready Connectors
Rated Voltage	DC 1500 V
Rated Current	30 A
Type of Connection	Spring clamp (tool-free connection)
Cable Cross Sections	4 mm² and 6 mm² , (5.5 – 7.5 mm OD)
Outer Cable Diameter	5.4 – 7.6 mm
Ambient Temperature Range	-40 °C … +85 °C (IEC)
Upper Limit Temperature	115 °C (IEC)
Fire Protection Class	UL94-V0
Insulation Material	PA
Certified by TÜV Rheinland according to IEC	IEC 62852:2014+Amd. 1:2020

Female cable coupler PV-KBT4-EVO READY

Male cable coupler PV-KST4-EVO READY

Staubli MC4-Evo Ready – Crimpless Connector Pair
